ACEN Ceiling speakers
What do you look for while choosing a ceiling speaker?
Smart looking? sweet sounding? easy to mount? ....
What when it comes to removing for painting your ceiling?
That is where you need one more criteria .. Easy removal!
That’s exactly the ACEN ceiling speakers offer “extra”..!

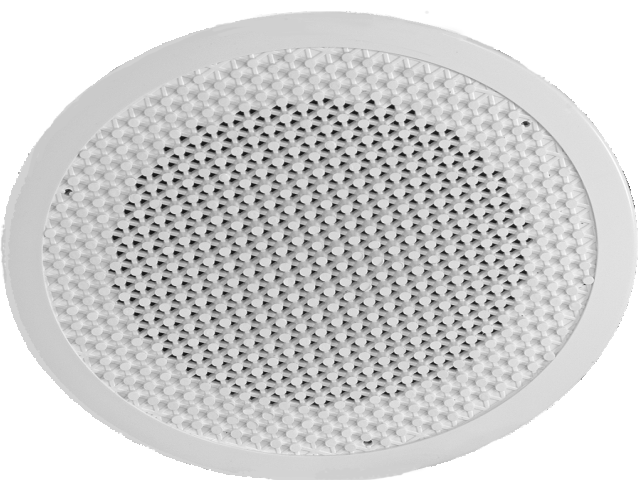

AS 501
White ABS molded, slim, beautifully styled, attractive yet inconspicious, high class sound, LMT-high quality line matching transformer (optional) that allows you to connect several speakers to amplifier, adjustable sound level through LMT.

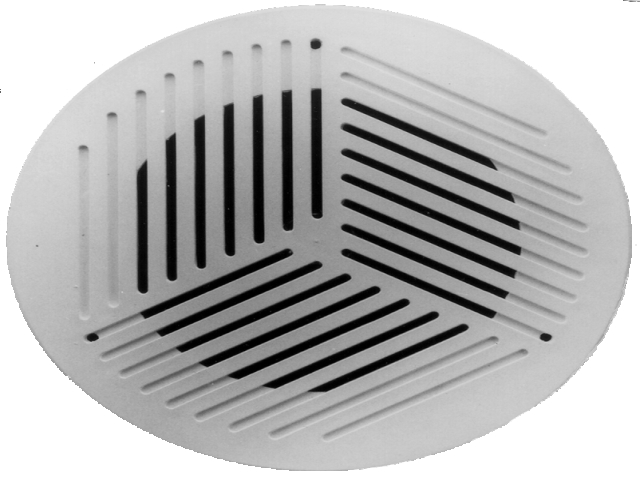

AS 601(also AS 401)

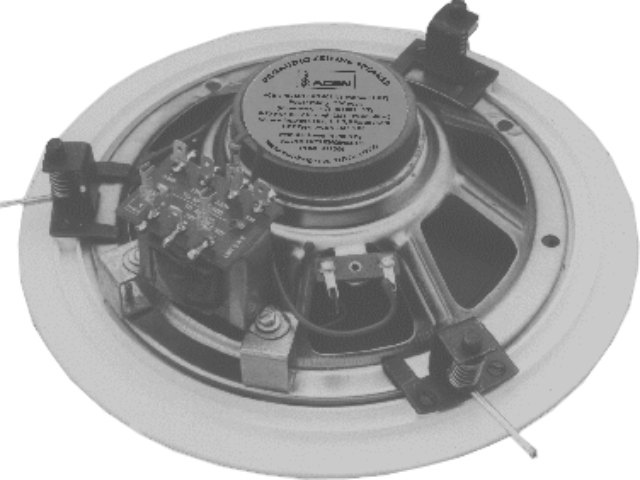

*Swivel clamping that permits mounting and removal with considerable ease compared to wing type clamps. This arrangement avoids damage to POP ceiling material should you need to remove the speaker for - say painting the ceiling. Available in two sizes with the same design - a great advantage when you want to use identical looking speakers for different ceiling heights. Can be also mounted on side panels.
* PATENT APPLIED FOR.
| Specification | ACEN AS 601 | ACEN AS 501 | ACEN AS 401 |
| Overall diameter | 215 mm | 172mm | 140 mm |
| Speaker | 170mm | 130mm co-axial | 102mm |
| Maximum height | 75mm | 65 mm | 105 mm |
| Power rating | 6W | 6W | 6W |
| Sensitivity,spl/1W/1m | 90 dB | 84 dB | 86 dB |
| Freq. Range | 60-15KHz | 50-15KHz | 70-15KHz |
| LMT taps(W) | 0.5,1,2.5,5 | 0.5,1,2.5,5 | 0.5,1,2.5,5 |
| Ceiling cutout | 192mm | 155mm (LMT detached) | 125mm (LMT detached) |
